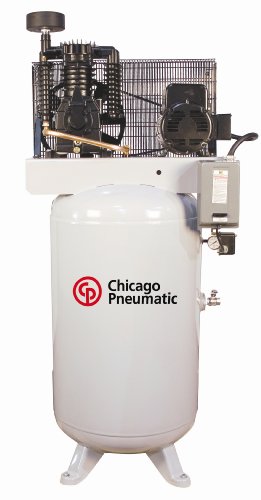

Chicago Pneumatic RCP-10123V 10 HP 120 Gallon Two Stage Reciprocating Air Compressor |  | Brand: CP (Chicago Pneumatic)
Category: Home Improvement
This item is no longer available
Sales Rank: 819868
Media: Tools & Home Improvement
Number Of Items: 1
Shipping Weight (lbs): 854
Dimensions (in): 86 x 41 x 30
MPN: RCP-10123V
Model: RCP-10123V
UPC: 094922248862
EAN: 0094922248862
ASIN: B0033AHL7O
| |
| Features:
| • | Solid Cast Iron Cylinder | | • | Start- Stop Pressure Control | | • | Fully Enclosed Belt Guard | | • | ASME Code Tank and Safety Valves | | • | 2 Year Bumper to Bumper Warranty |
| |
| Editorial Reviews:
Product Description
The Chicago Pneumatic RCP-10123V is a 10HP 120 Tank Compressor. Chicago Pneumatic durability and performance is world renowned. The Chicago Pneumatic Two Stage RCP stationary simplex compressors are available from 5 HP up to 10 HP. They can deliver from 15. 3 acfm up to 37. 2 acfm . Many power options are available with 208-230 volt single and three phase models, all the way up to 460 volt three phase. Aluminum head and coolers with deep fins allow for unmatched heat dissipation, while iron cylinders, iron valve plates, iron crankshafts, and stainless steel make a rock solid compressor. Balanced pistons and crankshafts mean smoother and quieter operation. Oversized main bearings and automotive style replaceable insert bearings for a durable, serviceable compressor pump. Features: Cast iron valve plates. Stainless steel reed valves. Solid cast iron cylinder. Heavy duty replaceable insert bearings. Oversized ball bearings. Balanced cast iron crankshaft. Deep finned cylinder head. Industrial grade balanced pistons. Easy access oil drain port. Easy to see oil level sight gauge. 10 HP / 208 - 230 Volt / 3 phase thermally protected motor. Magnetic starter is included on this model. Low oil shut off switch. 44. 5 cfm displacement. 37. 2 cfm at 100 psi 35. 4 cfm at 175 psi Fully enclosed belt guard. Triple-pass pump aftercooler and belt guard aftercooler. Start - stop pressure switch. 120 Gallon vertical ASME/CRN certified tank and safety valves. Durable polyester powder-coated tank. Automatic tank moisture drain. Discharge valve. Dimensions : 41 length X 30 width X 86 height X 854 lbs Recommended Chicago Pneumatic dryer # CPXHT-50 What's In the Box: Chicago Pneumatic RCP-10123V 10HP 120 Tank Compressor
|
|
|
| |
